What do the abbreviations on the screen mean?

Abbreviation Type Meaning
ACT xx Activity Activity is xx% of the goal (in steps)
SLP xx Sleep Sleep is xx% of the goal (in hours
ALT MT Sensor Altitude in meters
ALT FT Sensor Altitude in feet
CHR SPL Chrono Chrono Split
CHR LAP Chrono Chrono Lap
CNT DWN Chrono Count Down
CNT UP Chrono Count Up
CMP HDG Sensor Compass Heading
ABS HPA Sensor Absolute Pressure in hPa
REL HPA Sensor Relative Pressure in hPa
TEMP C Sensor Temperature in Celsius
TEMP F Sensor Temperature in Fahrenheit
TMZ 2 Time Second Time Zone
UV XTR Sensor UV index Very High
UV HIGH Sensor UV index High
UV MED Sensor UV index Medium
UV LOW Sensor UV index Low
WKT Activity Workout
WLK Activity Walk
RUN Activity Run
NOR Activity Nordic Walk
TRD MIL Activity Treadmill
CAL Notification Phone Call
EML Notification Email
SMS Notification SMS
FBK Notification Facebook
TWT Notification Twitter
WHA Notification Whatsapp
ITM Notification Instagram
MSG Notification Messenger
PCB Notification Picaboo
XIN Notification Xin
UBR Notification Uber
VIB Notification Viber
LKN Notification LinkedIn
SPO Notification Spotify
PIN Notification Pinterest
KAK Notification KakaoTalk
GML Notification Gmail
back to top

How can I set the backlight duration and intensity?

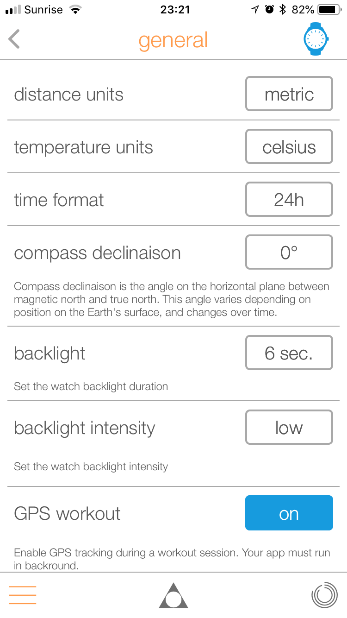

In the main menu (bottom left icon), select menu "General". The menu Backlight enables you to set the backlight duration. In the menu "Backlight Intensity", you can set the intensity of the backlight to high, medium or low.

back to top

Can I turn the screen off to save battery life?

This functionality is not available. To save battery life, set backlight duration to minimum and backlight intensity to low.

back to top

How do functions appear on the digital screen?

  • Time & Date (Main Screen)

    1st Screen / 1st Push (4 o’clock):
    Time & Date: The first 3 letters of each month (i.e. January > JAN, February > FEB etc.) appear under the time (i.e. 22:10:15 for example)

    2nd Screen / 2nd Push (4 o’clock):
    Activity/Sleep: Appears under the time and next to percentage as ACT (activity) and SLP (sleep). For example: ACT 84 (meaning that 84% of the activity goal has been reached)

    3rd Screen / 3rd Push (4 o’clock):
    Full date and Day: The day of the week appears under the date

  • Chronometer (accessible via crown pusher at 3 o’clock)

    1st Screen / 1st Push (4 o’clock):
    Split mode (In Split mode, the intermediate time gives the time since the start of the chrono (split time)). For example: 00:00:00 CHR SPL

    2nd Screen / 2nd Push (4 o’clock):
    Lap Mode (In Lap mode, the intermediate time gives the time since the last 4 o’clock push (lap time)). For example: 00:00:00 CHR LAP

  • Altimeter

    1 Screen (accessible via crown pusher at 3 o’clock)
    The altitude in meters or feet appears on the 1st line followed by the function name on the second line (i.e. 495 ALT MT or 1624 ALT FT)

  • UV Index

    1 Screen (accessible via crown pusher at 3 o’clock)
    The UV index measure (from 0 to 12) appears on the 1st line followed by the function name and the matching exposure category (LOW, MODerate, HIgh, Verry HIgh, eXTReme) on the second line
    (i.e. 1 UV LOW)

  • Compass

    1 Screen (accessible via crown pusher at 3 o’clock)
    The Heading in degrees appear on the 1st line followed by the function name on the second line (i.e. 265 CMP HDG)

  • Barometer (accessible via crown pusher at 3 o’clock)

    1st Screen / 1st Push (4 o’clock):
    The “Relative” measure in hPa (hectopascal) appears on the 1st line (i.e. 1019 REL HPA)

    2nd Screen / 2nd Push (4 o’clock):
    The “Absolute” measure in hPa (hectopascal) appears on the 1st line (i.e. 954 ABS HPA)

  • Temperature

    1 Screen (accessible via crown pusher at 3 o’clock)
    The temperature appears (in Celsius or Farenheit depending on chosen in-app setting) on the 1st line followed by the function name on the second line (i.e. 26 TMP C or 79 TMP F)

  • Worldtimer

    1 Screen (accessible via crown pusher at 3 o’clock)
    The second time zone (to be chosen and set via the app) appears on the 1st line followed by the function name on the second line (i.e. 10:15 TMZ 2)

  • Sleep

    1 Screen (accessible via crown pusher at 3 o’clock)
    The total amount of sleep recorded (hour and minutes) of the past night, including Power Nap time done during the day appears on the 1st line while the percentage based on your goal appears on the second line (i.e. 00:02:13 SLP 28)

  • Count Down/Up (accessible via crown pusher at 3 o’clock)

    1st Screen / 1st Push (4 o’clock):
    The countdown timing appears on the 1st line followed by the function name on the second line (i.e. 00:05:00 CNT DWN)

    2nd Screen / 2nd Push (4 o’clock):
    The count-up timing appears on the 1st line followed by the function name on the second line (i.e. 00:05:00 CNT UP)

  • GPS Workout (accessible via crown pusher at 3 o’clock)
    You can select your workout mode by pressing on the sub-function pusher at 4 o’clock

    1st Screen / 1st Push (4 o’clock):
    The GPS Walk mode data will appear on the 1st line followed by the function name on the second line (i.e. 00:00:00 GPS WLK)

    2nd Screen / 2nd Push (4 o’clock):
    The GPS Run mode data will appear on the 1st line followed by the function name on the second line (i.e. 00:00:00 GPS RUN)

    3rd Screen / 3rd Push (4 o’clock):
    The Treadmill mode data will appear on the 1st line followed by the function name on the second line (i.e. 00:00:00 TRD MIL)

  • Notifications

    Anytime during watch usage, if activated into the Application, a notification or alarm can occur and will be displayed on top of current function (on the second line of the screen) for any chosen app.
    A push to the Function button (3 o’clock) will reset the display to the current function.
    For example, for a WhatsApp notification, the screen will display WHA followed by the first 3 letters of the sender (i.e. WHA ROB)

  • Alarms

    Anytime during watch usage, if activated into the Application, alarms can chime and will be displayed on top of current function (i.e. 00:06:30 ALM 2). A push on the crown pusher (3 o’clock) or sub-function pusher (4 o’clock) will Snooze the Alarm.
    The Snooze time, 10 min by default, can be changed from the application.
